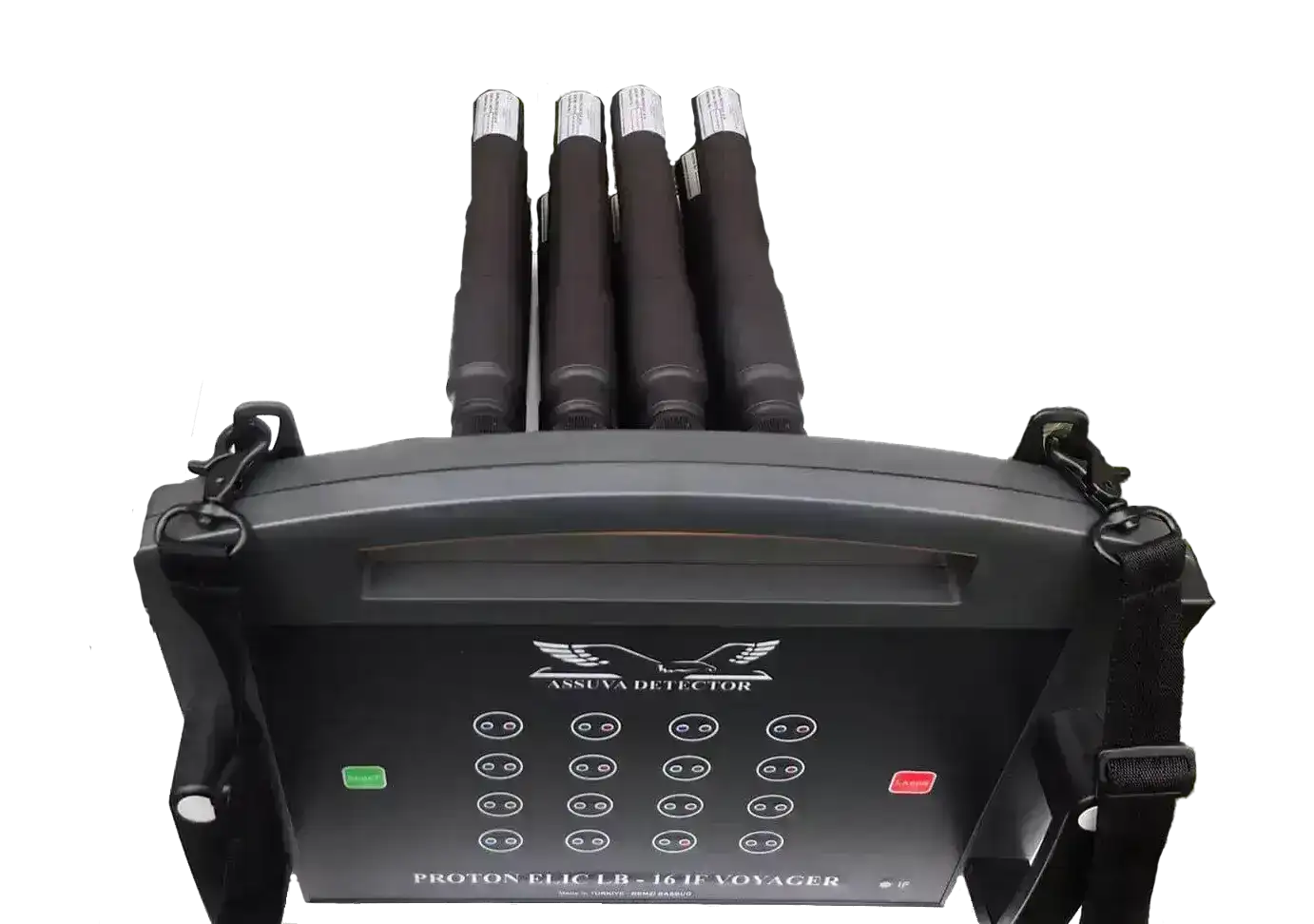

Proton Elic Lb-16

Description

The PROTON ELIC LB-16 is the ultimate device of the LB series.

QUICK DESCRIPTION: It is a 4 line, 16 column, 64 pixel thermal camera. It can see the thermal differences in the angle it looks at with 64 pixel resolution. The viewing angle is 60 degrees.

MAGNETIC SENSOR: The magnetic sensor measures the DC magnetic field strength at its location. Each sensor measures the magnetic field strength on the axis it is looking at. The JEO PHASE has 16 pieces, allowing rapid data collection by measuring the magnetic field (PHASE) intensity at 16 different points at the same time. .

The system can optionally operate thermally or magnetically. After collecting data from all sensors, it transfers the data to the computer software via bluetooth along with the direction it looks.

In the computer environment, the camera, which is at the center of a sphere, looks at the shell of the sphere from the inside and paints the inner surface of the shell of the sphere with the corresponding color according to the sensor information received. In this direction, it creates an image as the color equivalent of the thermal or magnetic field strength.

This situation offers the possibility of discrimination by taking numerical values separately for each metal object in the software environment.

In short, metal objects reflect on the screen as red, space blue, earth green.

OPPORTUNITIES AND CAPABILITIES: It can clearly detect formations such as tunnels, rooms, spaces, and buried metal objects buried underground, created by handwork or carving into the natural ground.

Our device is under warranty for 2 years.

As the number of sensors increases in the Lb series, the resolution of the target increases. It is the latest model with the highest resolution.

Our device has CE CERTIFICATE – ISO 9001 QUALITY CERTIFICATE – ISO 14001 QUALITY CERTIFICATE – ISO 22000 QUALITY CERTIFICATE – ISO 45001 QUALITY CERTIFICATE – ISO 27001 QUALITY CERTIFICATE – ISO 10002 QUALITY CERTIFICATE – OHSAS 18001 quality certificate

Own Documents

• CE Certificate Quality Certificate
• ISO 9001 QUALITY CERTIFICATE
• ISO 14001 QUALITY CERTIFICATE
• ISO 22000 QUALITY CERTIFICATE
• ISO 45001 QUALITY CERTIFICATE
• ISO 27001 QUALITY CERTIFICATE
• ISO 10002 QUALITY CERTIFICATE
• OHSAS 18001 QUALITY ASSURANCE CERTIFICATE
• References From Other Official Institutions

Assuva Proton Elic Lb-16 Technical Specifications

• Operating temperature -20C to +40C
• Temperature when not in operation -40C to +60C (Do not expose to direct sunlight.)
• Transducer pulse width modulated rate 1953 khz
• Battery time 50-100 hr
• Charging time max 3 hr
• Maximum continuous power 850 mA
• Voltage source 5V Frequency width 433 mhz+/-khz various Maximum operating humidity -95
• Software display colors 200 m
• Screen refresh rate 0.2 sec
• Water resistant-no
• Processor – IMU MAGNETIC-0120ut
• THERMAL SENSOR 64 pixels
• Internal working memory-2 CGB
• Modulation -100.100 am
• Modulation signal-digital Demodulation-log
• AM-DEMODULATOR Scan center-1.3 A
• Scan rate-0.2 Nanosecond(max)-auto 1pps
• Transmitters 2-7 Measuring range-+-150Ut
• Bandwidth- DC ..1 kHz (-3 dB)
• Green laser
• 50 meters depth
• 1000 meters range
