Proton Elic Lb4s

Description

THE DEVICE IS MADE FROM THE NEW OPERATING SYSTEM AND ITS RENEWED SENSORS, CLEARER, FASTER, AND MORE SATISFACTION NOW, FIVE TIMES BETTER THAN THE PROTON ELIC LB-4 ( S ).

PROTON ELIC LB-4 ( S ) 2023 LIGHT & SOUND REACTION

In this renewed version, this system works on the basis of simultaneous visualization of the audible and illuminated reaction, which provides the user with audible metal and space warning as well as illuminated and 3D visual possibilities.

With these features ( K.S.S.I. ), although the sensor technology has changed, more clear and flawless images are obtained.

Quick definition: 4 lines 16 columns 64 pixels are thermal. He can see the differences in the angle he looks at at 64Pixel resolution. The viewing angle is 60 degrees.

Magnetic Sensor: The magnetic sensor decodes the dc magnetic field strength in its location. Each sensor solves the magnetic field intensity on the axis it is looking at at its own point (GEO PHASE) Having 4 pieces, it provides fast data collection by measuring the magnetic field (Phase) intensity at 4 different points at the same time. After the system collects data from all sensors that can operate selectively, either thermally or magnetically, it sends the data via bluetooth to the computer software along with the direction it is looking at.

The camera, located at the center of the sphere, looks at the shell of the sphere from the inside, and according to the sensor information received, the relevant color is painted on the inner surface of the shell of the sphere. This creates an image as the color equivalent of the thermal or magnetic field intensity in the direction of view. This situation is met as a separate number for each metal in the software environment, which offers the possibility of discrimination. The color equivalent (Metal red-Space blue-Torak green) is briefly reflected on the screen.

OPPORTUNITIES AND CAPABILITIES: Handcrafted buried underground or carved into natural ground. (TUNNEL-ROOM-WAREHOUSE) style formations and buried metals (CONCRETE-HORASAN-KAYA-SOIL) can detect spaces or metals.

In addition, there is a suitable menu option for indoor indoor crests or interior searches such as caves, for example; (INDOOR SCAN-OUTDOOR SCAN )

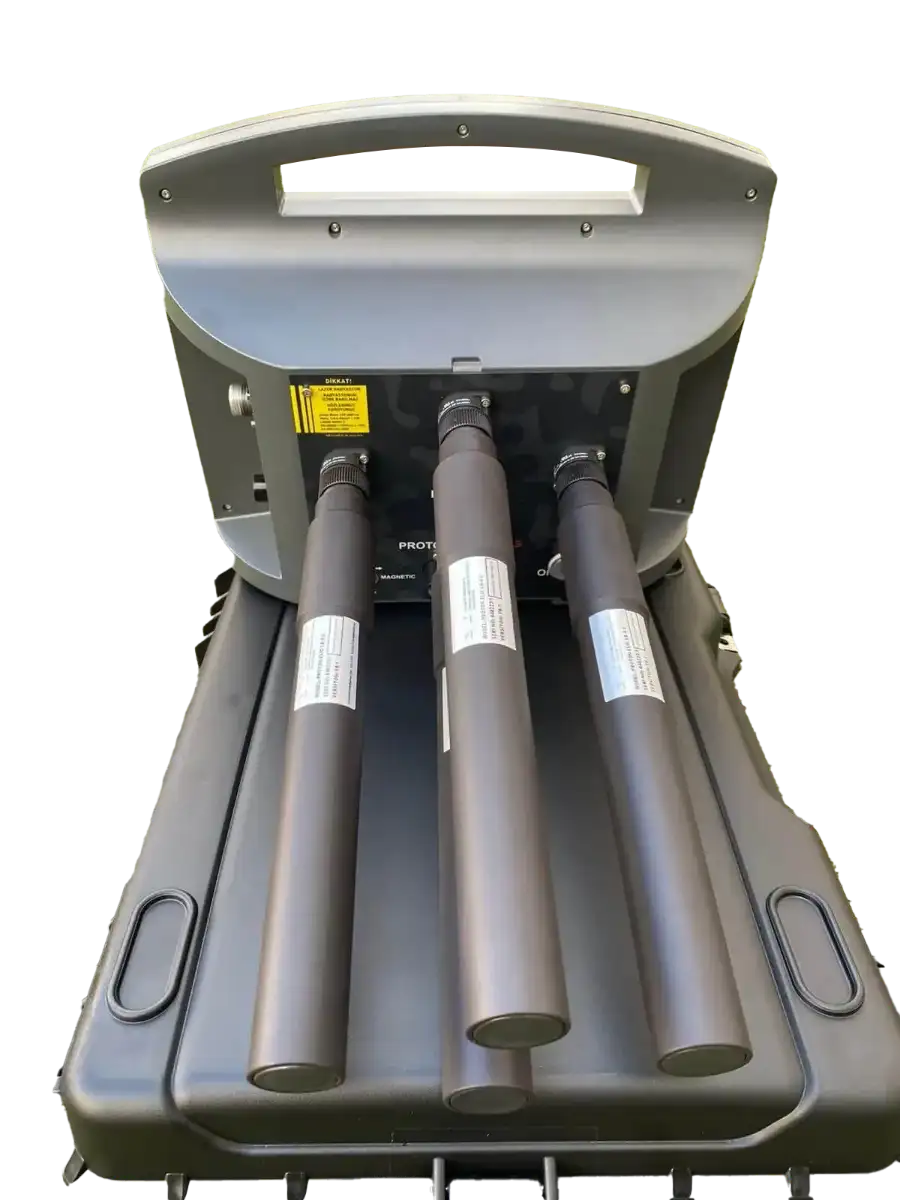

PROTON ELIC LB-4 S IS A NEW GENERATION PROTON ELIC SERIES. THE LB-4 S HAS CUSTOMIZED LIDAR AND 64 PXS THERMAL SENSORS, AS WELL AS 4 CESIUM MAGNETIC MULTISENSORS.

The LB-4 S penetrates the 1000 MT Range. It has 3D-4D presentation with its own 3D customized program. (Metal discrimination, depth detection, distance information, and Lidar sensor calculating to pinpoint the target, there is (-DAT-VE GRID) file translation for detailed analysis if desired.

LB-4 /64 PXS Thermal provides 64 times more sensitive and more powerful than previous models and at the same time provides high resolution on a wider area in seconds.

With the LB-4 S/4 Enhanced probe, it provides a more powerful and clearer scanning opportunity in a very short time.

Improves clarity with faster surface recognition thanks to the LB-4 S/Lidar sensor

With its powerful laser in S/pointing, the LB-4 easily locates the target for you.

Own Documents

• CE Certificate Quality Certificate
• ISO 9001 QUALITY CERTIFICATE
• ISO 14001 QUALITY CERTIFICATE
• ISO 22000 QUALITY CERTIFICATE
• ISO 45001 QUALITY CERTIFICATE
• ISO 27001 QUALITY CERTIFICATE
• ISO 10002 QUALITY CERTIFICATE
• OHSAS 18001 QUALITY ASSURANCE CERTIFICATE
• References From Other Official Institutions

Assuva Proton Elic Lb4s Technical Specifications

• Operating temperature -20C to +40C
• Temperature when not in operation -40C to +60C (Do not expose to direct sunlight.)
• Transducer pulse width modulated rate 1953 khz
• Battery time 50-100 hr
• Charging time max 3 hr
• Maximum continuous power 850 mA
• Voltage source 5V Frequency width 433 mhz+/-khz various Maximum operating humidity -95
• Software display colors 200 m
• Screen refresh rate 0.2 sec
• Water resistant-no
• Processor – IMU MAGNETIC-0120ut
• THERMAL SENSOR 64 pixels
• Internal working memory-2 CGB
• Modulation -100.100 am
• Modulation signal-digital Demodulation-log
• AM-DEMODULATOR Scan center-1.3 A
• Scan rate-0.2 Nanosecond(max)-auto 1pps
• Transmitters 2-7 Measuring range-+-150Ut
• Bandwidth- DC ..1 kHz (-3 dB)
• Green laser
• 15-25 meters depth
• 1000 meters range
